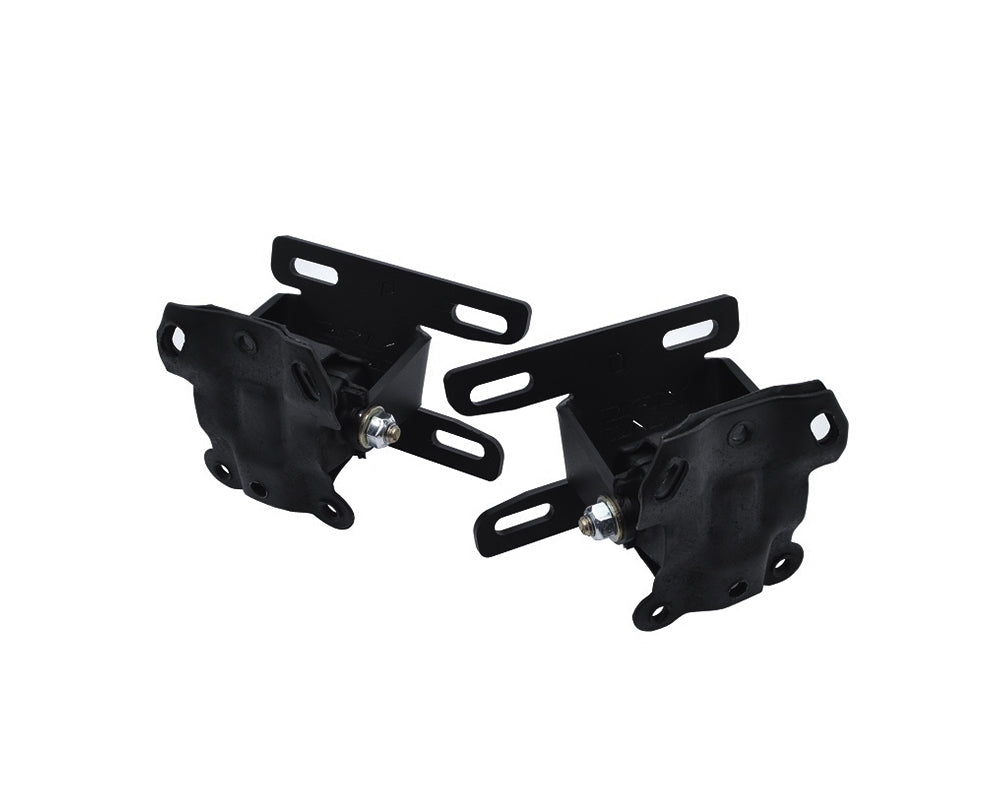

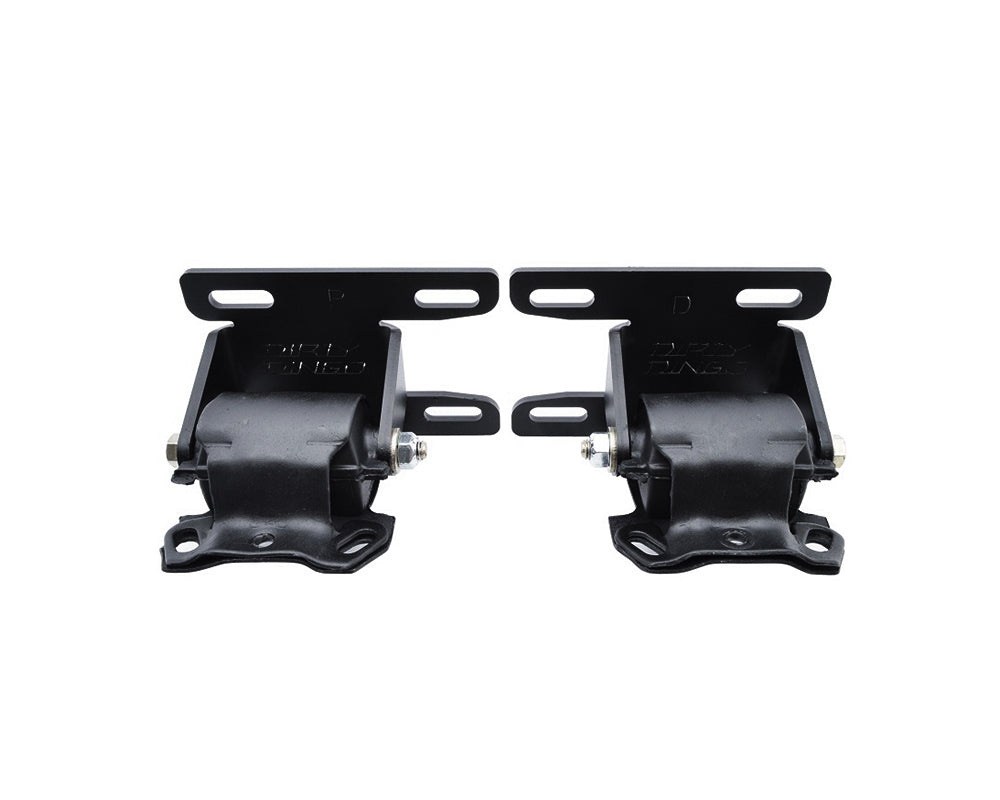

Dirty Dingo 4WD LS S10 Adjustable Conversion Mounts

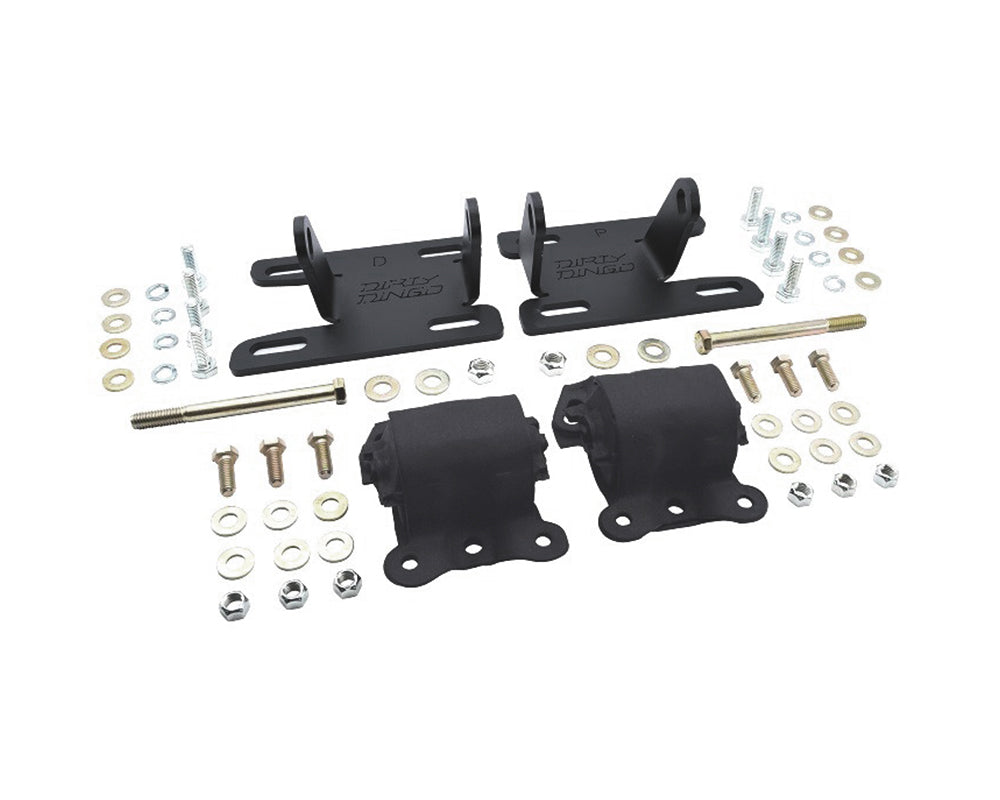

Precision CNC laser cut from .250 thick 1050 High Carbon cold rolled steel. These Patented Design LS adjustable conversion mounts are for installing the 1997-2013 Gen III/IV LS series engine into 1982-2004 4WD Chevrolet & GMC S10 trucks and mini blazers. This is a complete kit including the clamshell frame mounts. These mounts are slotted for adjustment and offer 1 1/2 inches of adjustment for correct engine placement in the engine compartment. Precision CNC press brake folded with a large radius die to reduce stress on the bends. Kit includes all necessary grade-8 zinc-coated bolts including new bolts to mount the clamshell engine mount to the frame and new cross bolts.

* Will not fit ZR2 chassis trucks.

* Will fit Syclone and Typhoon

* (Raw steel not painted) Black texture powder coat is available for the engine side. Clamshell mounts are painted black.

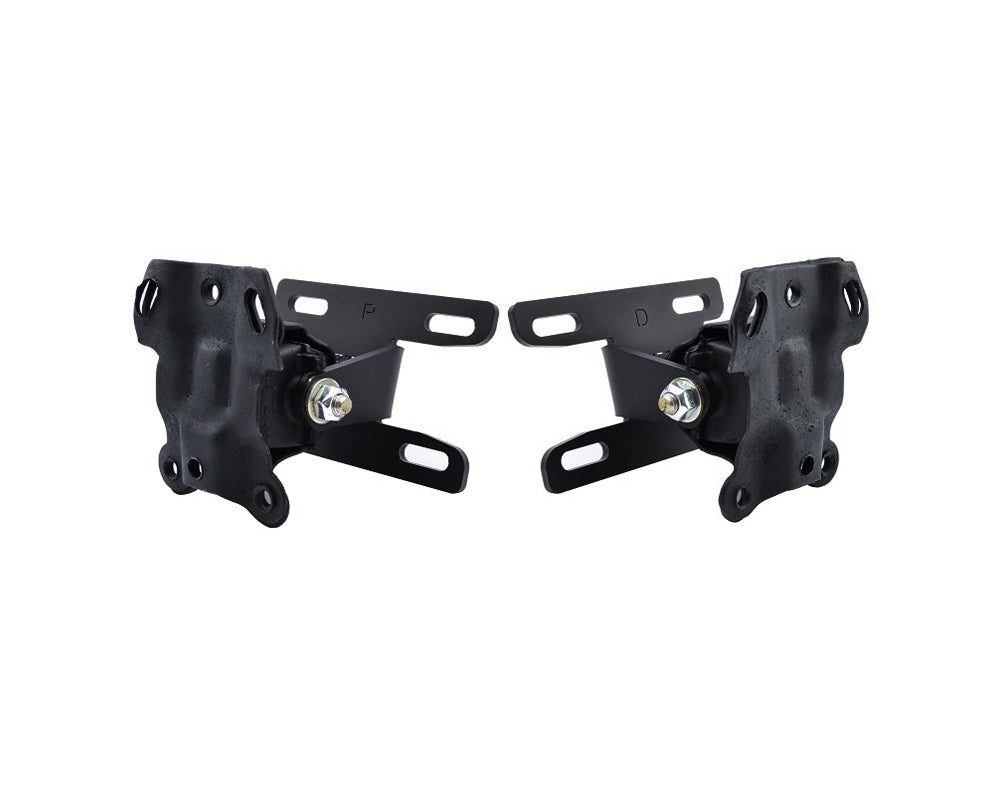

* Sold in pairs, left and right. "D" is the Drivers side, and "P" is the Passenger side.

* Low mount alternators will not clear the S10 steering box.

* Will fit with Milodon #31083 S10 4X4 oil pan.  Additional Milodon parts include #18291 Oil Pickup Tube, #21575 LS & Gen III Oil filter relocation kit, and #85002 Oil Pan Bolt kit.

* This will fit with S10 LS conversion headers.

Featured in GM High-Tech Performance, Chevy High Performance, Street Rodder, and Super Chevy Magazines.
